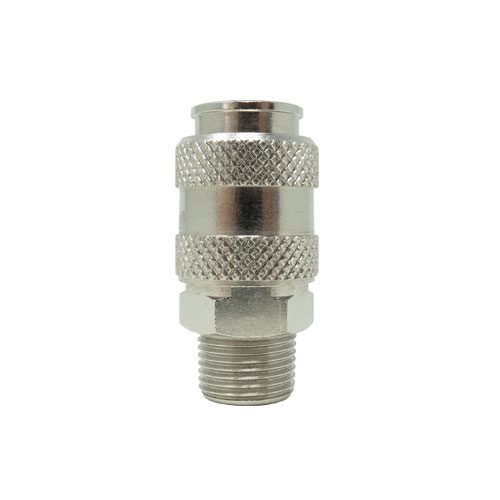

8410FM
Male quick coupler - Universal profile
Temperature Operating: from -15 ºC to 80 ºC
Working Pressure: 16 Bar
TECH
References 8410FM
| Code | T | I | D | L | H | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8410FM02 | R1/4" | 11,0 | 24,0 | 58,0 | 20 | |||||||||||||||||||||||||
| 8410FM03 | R3/8" | 11,5 | 24,0 | 54,0 | 20 | |||||||||||||||||||||||||
| 8410FM04 | R1/2" | 14,0 | 24,0 | 56,5 | 22 |
